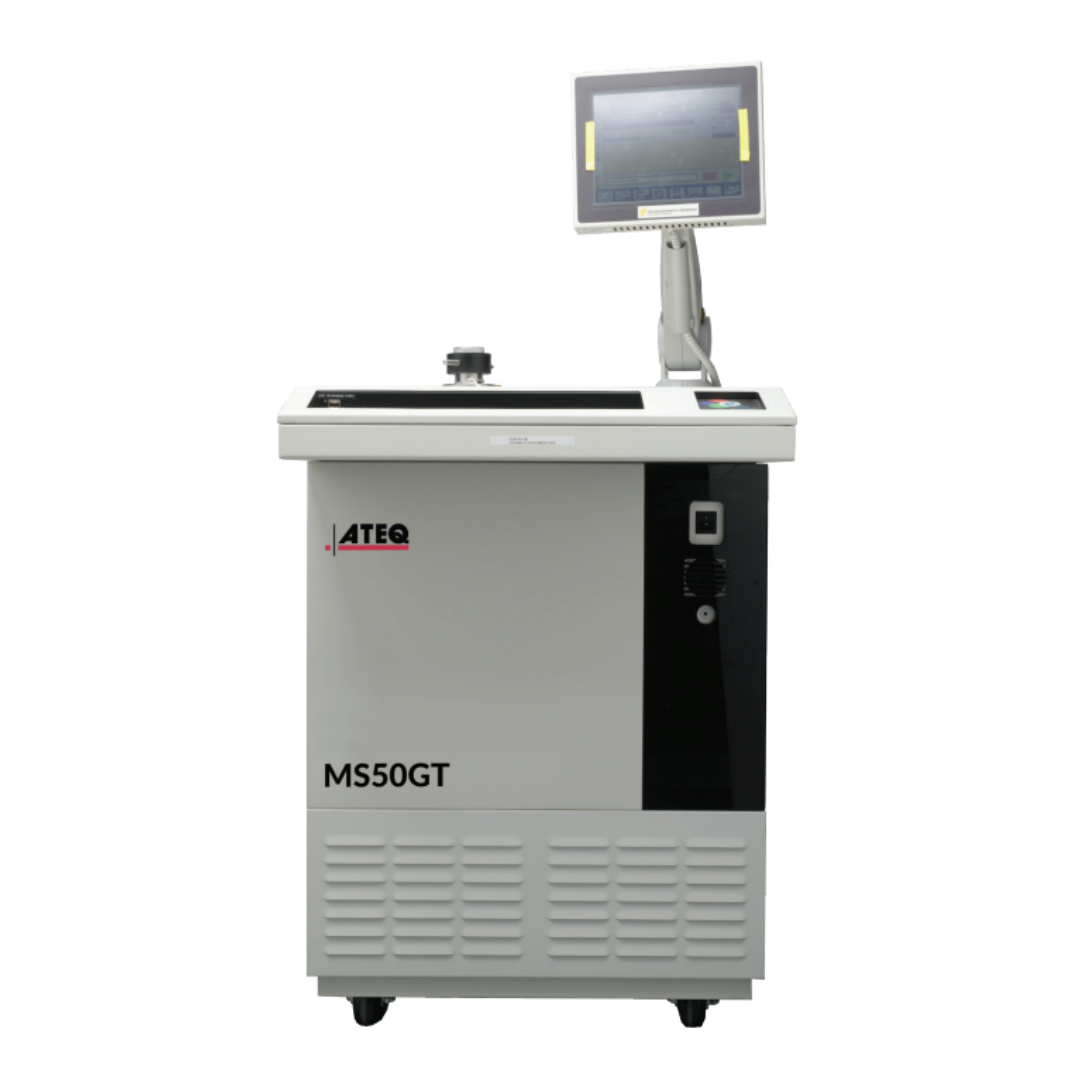

MS-50GT
HIGH-SPEED PRODUCTION CONSOLE LEAK DETECTOR
The MS-50GT is a highly technical system that incorporates many sophisticated technologies. In view of this, every effort has been made to automate the unit’s operation and maintenance procedures. The MS-50GT is an automated high-speed production console leak detector featuring three flow modes which provide flexibility and maximum productivity for application-specific leak testing.
MS-50GT : APPLICATIONS
MS-50GT: FEATURES
- UFT mode allowing for programmable automatic test cycle operation
- The only production leak detector with an interactive LCD touch-screen display and GUI
- UFT test cups (various sizes)
- Dual pump system – dedicated Dry Foreline and Dry Roughing Pumps
- Simple one-button power up has systems ready to test in less than 3 minutes
- Built-in diagnostics for trouble-free maintenance
- Fully automatic startup, tuning and calibration
- Three Flow modes provide flexibility and maximum productivity for application-specific leak testing
- Starts testing at Atmospheric Pressure
- Resolution of 14 at mass 2 is twice the industry average
- Password protection
| Technical Specifications |
|---|
| Vacuum Mode | Direct, reverse or combination, gross testing |
|---|---|
| Roughing Pump | 16 direct drive (cfm) |
| Foreline Pump | 7 direct drive |
| High Vacuum | Pump 53 L/sec |
| Vacuum Gaughing | Pirani: Test Port and Foreline Ion: High Vacuum |
| Cold Trap | MS-50GT- N/A MS-50GT Dry- N/A |
| Power | 115/50-60/30; 230-240/50-60/15 100/50-60/30 V/Hz/A |
| Weight | 475 (215.45) lbs. (kg) |
| Dimensions | (W x H x D):25.75 x 30.625 x 35.25 (65.40 x 77.79 x 89.54) |
| Test Cup, UFT Option UFT(Ø x D) |
Dimensions (in mm) W344*H395*D618 |
| Test Port Connection | 1.125 (inches) |
MS-50GT: SPECIFICATIONS
Characteristics
- Leak Measurement Range: 3.0×10-11 to 10
- Leak Ranging: Auto/Manual
- Response Time *: <2 direct, <2.5 reverse
- Resolution *: 14 at mass 4
- Gross Test, Time (with UFT Option): 3 seconds at 100 Torr
- Fine Test, Time (with UFT Option): 10 seconds at 25 mTorr, 10-10
- Mass Spectrometer Tube: 180° deflection; dual-magnetic sector
- Auto-tuning
- Auto-calibration: Internal – yes; External – auto
- Auto-zeroing: several zeroing functions, modes for background suppression
- Reject set-point
- Built-in calibrated leak: 10-8 range
- NIST traceable
- Temperature compensated
- Scan/Descan
- Filaments: 2 Thoria Coated Irridum
- Testable Masses: 3+4
- Background Compensation: Automatic
- Maximum Operating Pressure: 100 mTorr, 10 Torr reverse
- Display/Interface: 10 (25.4) LCD flat panel display, capacitive touch-screen / Graphical User Interface (GUI)
- Units: cc/second, mbar*l/second
Flexible Communication Format
- RS-232C
- Software: 50 programmable test recipes; Data Link optional
| Performance |
|---|
| Sensitivity vacuum* |
Sensitivity sniffing |
Startup Time |
|---|---|---|
| 3.0×10-11 (atm-cc/sec) |
10-3~10-5 Atm-cc/second |
Less than 3 minutes |
MS-50GT: DOCUMENTATION
ENGLISH
